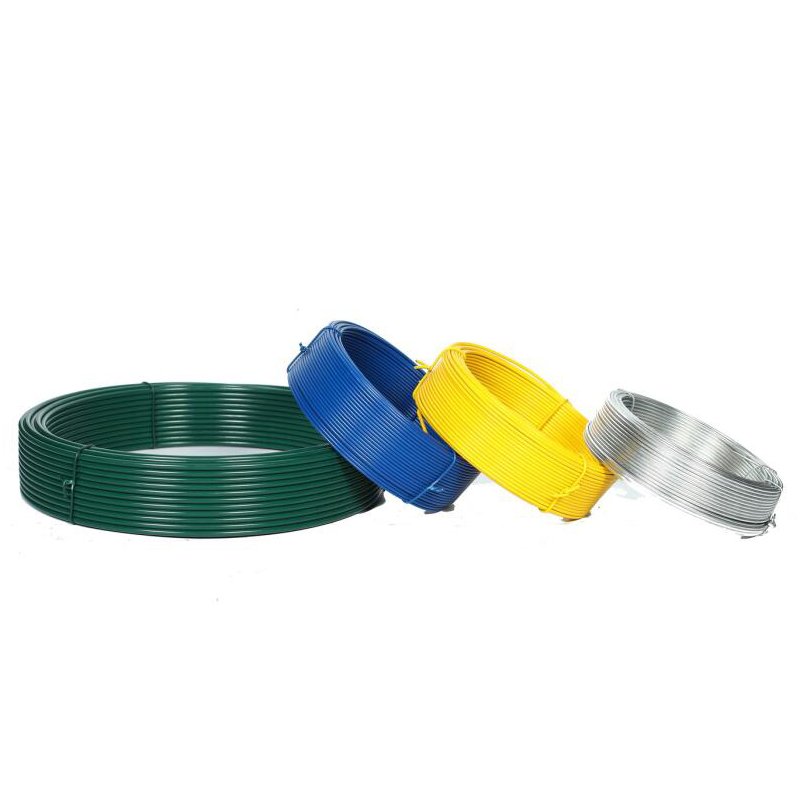

The outer layer of the PVC coated wire is a polyvinyl chloride layer. PVC coated wire can be used in daily life binding and industrial tying as tying wire. PVC coated wire also can be used in wire hanger or handicraft production.
Specification:
- Materials before PVC coating: steel wire, galvanized wire, redrawing wire, annealed wire, etc.
- Surface: plastic covering or plastic coating.
- Color: green, blue, gray, white and black; other colors also available on request.
- Average tensile strength: 350 N/mm2 – 900 N/mm2.
- Elongation: 8% – 15%.
- Wire diameter before coating: 0.6 mm – 4.0 mm (8–23 gauge).
- Wire diameter with coating: 0.9 mm – 5.0 mm (7–20 gauge).
- Plastic layer: 0.4 mm – 1.5 mm.
- Wire diameter tolerance: ±0.05 mm.
| Core wire diameter | Diameter after coated |
| 0.8mm | 1.2mm |
| 1.0mm | 1.4mm |
| 1.4mm | 2.0mm |
| 2.0mm | 3.0mm |
| 2.5mm | 3.5mm |
PVC COATED WIRE Feature:
- Excellent corrosion resistance.
- Anti-aging property.
- Anti-cracking.
- Long service life.
- Different colors.
Application:
Wire hanger or handicraft production.
Tie wire for daily life binding or industrial tying.
Protective chain link fences.
Construction of industrial security fences.
Freeways and tennis courts.
OUR COMPANY:
Dingzhou BEST Hardware Co,. Ltd was established in 2004. Mainly producing various nails, iron wire, mesh and sintering mesh.
- Nails: roofing nails, common nails, and concrete nails and so on.
- Iron wire: galvanized iron wire, black iron wire
- Welded mesh,hexagonal mesh, sintering mesh, and further .
Our products are well distributed to America, Europe, the Middle East, Southeast Asia and Africa markets. We sincerely invite you to visit our factory and make good benefits for both of us.
