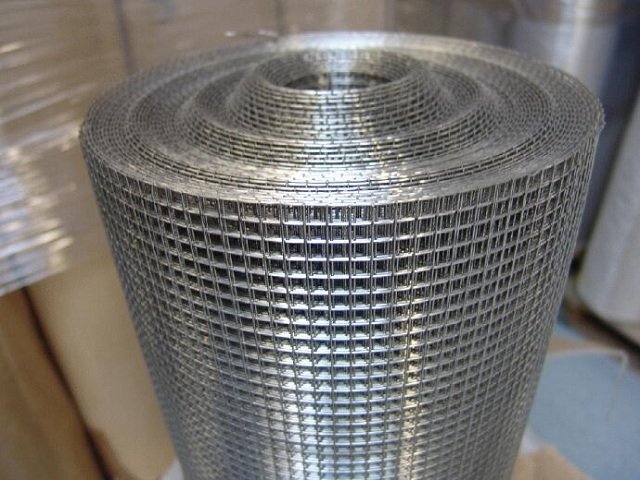

Introduction of Galvanized welded wire mesh
Galvanized welded wire mesh can be divided into electrical galvanized welded wire mesh, hot deep galvanized welded wire mesh.
Besides, according to different processing methods, there are galvanized before welding wire welded mesh and galvanized after welding welded mesh. Like electrical galvanized wire welded mesh, hot deep galvanized wire welded mesh, galvanized redrawing wire welded mesh, electrical galvanized（after welding） welded wire mesh, hot deep galvanized(after welding) welded wire mesh.
And Galvanized redrawing welded wire mesh is welding by high quality redrawing low carbon steel wire( the material of this kind wire is high quality hot-rolled wire rod. The main processes is Acid washing, galvanizing, and cold-drawing). The surface of this kind mesh is very bright. It is easy to transport and store. And the price is lower than electrical galvanized welded wire mesh. It is popular in the market. The usage of this kind mesh is same as black welded wire mesh.
Specifications of welded wire mesh
| Material : | high quality low carbon iron wire, galvanized iron wire, stainless steel wire |
| Wire Diameter: | 0.5mm-6.0mm |
| Opening size: | 10mm-300mm |
| Surface treatment: | electric galvanized, hot dipped galvanized, pvc coated (all colors) |
| Weave: | galvanised after welded,galvanised before welded |
| Hole shape: | square |
| Panel width: | 0.5m-3.0m |
| Panel length: | 1.0-8.0m |
| Features: | Simple structure ,beautiful and practical,Stronge welded point, anti-erosion , anti-aging, anti-sunburn. |
Difference of Electro and hot dipped galvanized
- Electrical galvanized welded mesh has 15g/m2 zinc coating in common. It was used in industrial, building, travel, mine etc.
- Hot deep galvanized welded mesh has thicker zinc. The zinc coating is more than 122g/m2. And the quality is better than electrical galvanize. It usually used in external wall thermal insulation system, concrete pouring，poultry farm, oil, chemical, machines and exports etc.
Regular mesh size with thickness
| 1/4″×1/4″ | 10.6mm×10.6mm | 22,23,24 |
| 3/8″×3/8″ | 12.7mm×12.7mm | 19,20,21,22 |
| 1/2″×1/2″ | 6.4mm×6.4mm | 16,17,18,19,20,21,22,23 |
| 5/8″×5/8″ | 16mm×16mm | 18,19,20,21 |
| 3/4″×3/4″ | 19.1mm×19.1mm | 16,17,18,19,20,21 |
| 1″×1/2″ | 25.4mm×12.7mm | 16,17,18,19,20,21 |
| 1″×1″ | 25.7mm×25.7mm | 16,17,18,19,20,21 |
| 1-1/2″×1-1/2″ | 38mm×38mm | 14,15,16,17,18,19 |
| 1″×2″ | 25.7mm×50.8mm | 14,15,16 |
| 2″×2″ | 50.8mm×50.8mm | 12,13,14,15,16 |
| 3”x3” | 75mm×75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2”x4” | 50mm×100mm | 2.11mm,2.5mm |
| 4”x4” | 100mm×100mm | 2.0mm,2.5mm |
