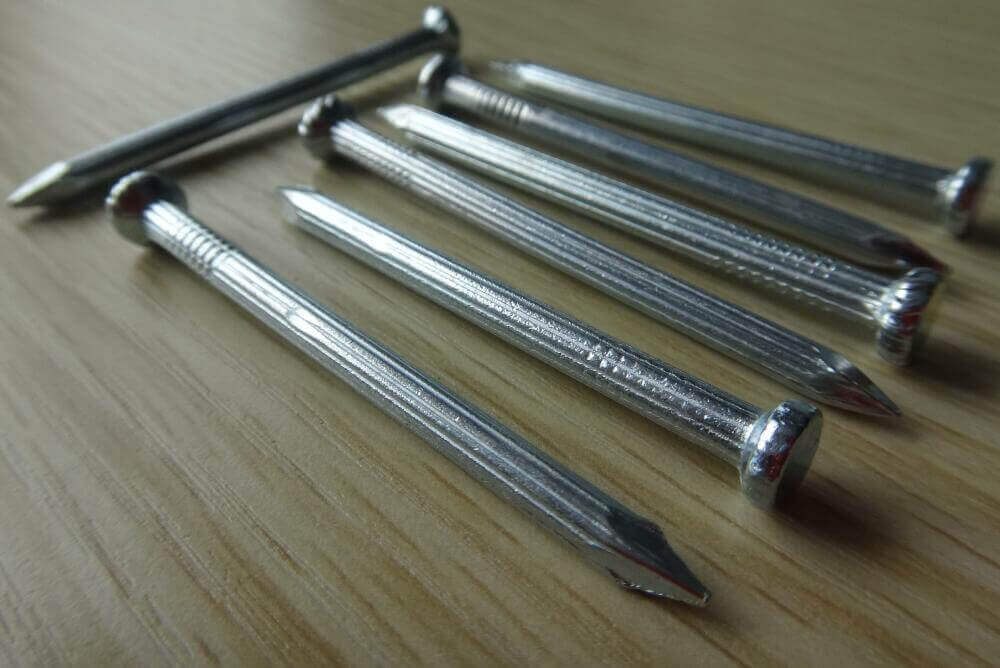

Introduction of Galvanized concrete nails
The raw material of Galvanized concrete steel nails by 55# high carbon steel wire rod. The progress are including wire drawing, heat treatment, nails making, second heat treatment, polishing, acid washing, and electro galvanizing.
We are the manufacture of concrete nails of China. have many years experience in nail industry.
- Product Name: Angular spiral galvanized concrete steel nails
- HS code: 7317000000
- Standard: ANSI, DIN,GB,ISO,JIS,
- Certificate: BV, SGS, CE BIS,CNCA,CIQ,COC.
- Material: high carbon steel #45, #55, #65 high carbon steel wire rod.
- Head: thick flat Head, with letter “ P”,” M”,” S”,” D”,” K”,” T” .
- Point: Diamond sharp point,
- Length: 3/4” – 6” (19mm – 152mm)
- Shank diameter: 2.0mm – 6.0mm;
- Finish: galvanized, black, blue, yellow, zinc coated, hot dipped.
- Shank: straight grooved shank, plain shank, spiral shank, angular spiral shank, twisted shank
- Treatment: hardened, heat-treatment
- MOQ: 2 tons each size
- Packing: colourful box and master carton, standard export packing, under customer’s request
- Payment Term: 30% deposit in advance & the balance payment against B/L copy at sight.
- Usage: building construction, concrete wall & brick wall, furniture, decoration, household, etc.
Specification of CONCRETE STEEL NAILS
| inch | mm | BWG |
| 1/2″ | 12.7 | 20/19/18 |
| 3/4″ | 19 | 19/18/17 |
| 1″ | 25.4 | 17/16/15/14 |
| 1 1/4” | 31.7 | 16/15/14 |
| 1 1/2” | 38 | 15/14/16 |
| 1 3/4″ | 44.4 | 14/13 |
| 2” | 50.8 | 14/13/12/11/10 |
| 2 1/2” | 63.5 | 13/12/11/10 |
| 3″ | 76.2 | 12/11/10/9/8 |
| 3 1/2” | 88.9 | 11/10/9/8 |
| 4” | 101.6 | 9/8 |
| 4 1/2” | 114.3 | 8/7 |
| 5” | 127 | 7/6 |
| 6” | 152.4 | 6/5 |
| 7” | 177.8 | 5/4 |
FURTHERMORE, CONCRETE NAILS PACKING
- 1KG per colourful box,25 boxes per carton, colourful box and carton with clients’ logo.
- 1KG per Plastic bag, 25 Plastic bags per carton
- 500g per box, 50boxes per carton
- 300g per box, 50boxes per carton
- 280g per box, 50boxes per carton
- 25KG bulk carton
- standard export packing, or under customer’s request.
